Specifications
1.4m³
Rated weight
2000kg
Overall dimensions (length*width*height)
6650×2400×2920mm
Wheel base
2650mm
Tread
1630mm
Max. breakout force
70KN
Max. dumping height
3200/3500mm
Dump distance
1084mm
Total time
9.7s
Operating weight
6500kg

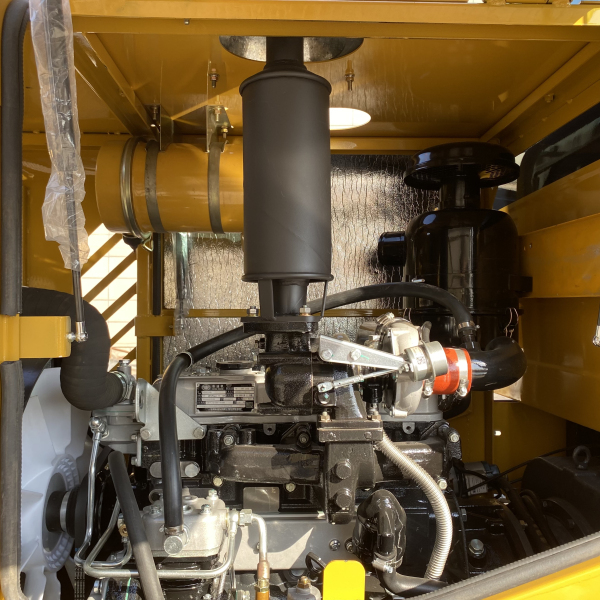

Engine
YUCHAI4108 or CUMMINS 4BT3.9-C100 or XICHAI4DX22-96
Pattern
Inline, water-cooled, 4-stroke, direct injection
Rated power
85KW/75KW/70KW
Max. torque
261N.m
Torque converter and transmission system
YJ280
3-element single stage
Transmission type
Full-power shift, countershaft type
Number of gear
4 forward, 4reverse
Max. travel speed
30km/h
Axle
HUICHANG
Main reducer pattern
Spiral bevel gear first reduction
Pattern of wheel side moderation
Planet gear moderation of single

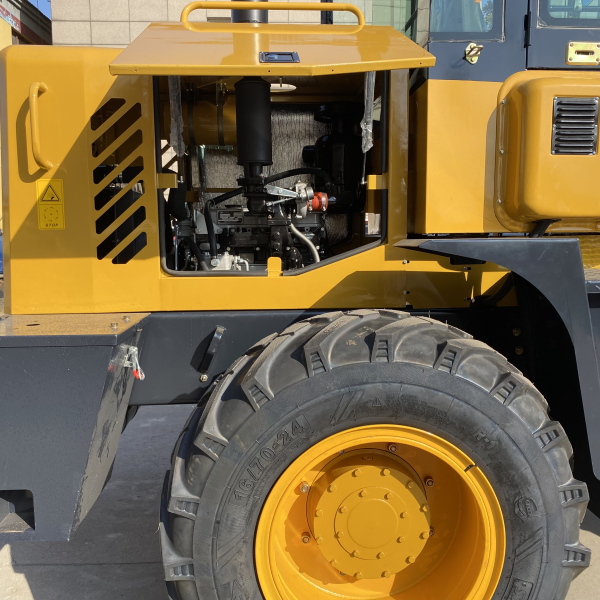

Tire
16/70-24
Steering system
Articulated and hydraulic steering
Min. turning radius(outside of bucket)
4500mm
Max. turning angle
35°±1
Implement hydraulic system
CBG2063
Displacement
63ml/r
System working pressure
16MPa
Distribution device model
DF20.2C
Brake system
Air assisted oil disc on four wheel
Parking brake type
Soft axle control, outside bunch drum type
